CCS PIC® MCU Development Tools
CCS Development Kits provide a cost-saving & comprehensive solution for PIC® MCU development. Choose between PIC® MCU Device Families or Application Specific Kits that span a multitude of embedded technologies. Begin your product design, development, implementation, and testing within minutes of opening the kit.
Jump to: PIC12 | PIC16 | PIC18 | PIC24 | dsPIC® DSC | Bluetooth® Interface | CAN Bus | Touch Sensing | Analog | Ethernet | RFID/RF | USB | Wireless - Ember ZigBee™ | Robot | Serial Busses | Pin Sockets | Hobbyist | Educational
| CCS Dev Kit (hover for details) Target Device |
Board (hover to magnify) | Board Specifics | IDE Compiler | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Push Button |
LEDs | POTS | RS-232 Ports |
I/O Pins | Display Options | Special Features | Power | Chip | Programming | Vdd | ||||
| Total | Analog | |||||||||||||
| PIC12F675 Kit PIC12F675 |  | 1 | 3 | 2 | 1 | 6 | 4 | AC adapter | 8 Pin socket | ICD | 5V | PCW | ||
| PIC12F683 Kit PIC12F683 |  | 1 | 3 | 2 | 1 | 6 | 4 | AC adapter | 8 Pin socket | ICD | 5V | PCW | ||

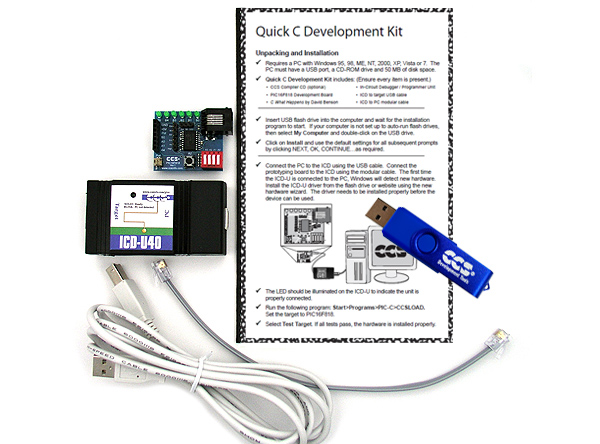

| Quick C Kit PIC16F818 |  | 1 | 6 | 1 | 0 | 4 | 2 | 4 Toggle Switches | ICD | Soldered | ICD | 5V | ||
| PIC16F877A Kit PIC16F877A |  | 1 | 3 | 1 | 1 | 30 | 7 | AC adapter | Soldered | ICD | 5V | PCW | ||
| PIC16F887 Kit PIC16F887 |  | 1 | 3 | 1 | 1 | 30 | 12 | AC adapter | Soldered | ICD | 5V | PCW | ||
| PIC16F1825 Kit PIC16F1825 |  | 1 | 3 | 1 | 1 | 14 | 3 | AC adapter | Soldered | ICD | 5V | PCW | ||
| PIC16F1937 Kit PIC16F1937 |  | 2 | 3 | 1 | 1 | 6 | 4 | 4.5 Digit Segmented LCD | AC adapter | Soldered | ICD | 5V | PCW | |
| PIC18F4520 Kit PIC18F4520 |  | 1 | 3 | 1 | 1 | 30 | 11 | AC adapter | Soldered | ICD | 5V | PCWH | ||
| PIC18F6722 Kit PIC18F6722 |  | 1 | 3 | 1 | 2 | 48 | 11 | AC adapter | Soldered | ICD | 5V | PCWH | ||
| PIC18F8722 Kit PIC18F8722 |  | 1 | 3 | 1 | 2 | 29 | 13 | External memory | AC adapter | Soldered | ICD | 5V | PCWH | |
| PIC18F45K22 Kit PIC18F45K22 |  | 1 | 3 | 1 | 1 | 30 | 25 | AC adapter | Soldered | ICD | 5V | PCWH | ||
| PIC18F67J10 Kit PIC18F67J10 |  | 1 | 3 | 1 | 2 | 48 | 10 | AC adapter, 9V battery | Soldered | ICD | 3.3V | PCWH | ||
| PIC24FJ Kit PIC24FJ256GA106 |  | 1 | 3 | 1 | 2 | 53 | 16 | AC adapter, 9V battery | Soldered | ICD, Real-ICE | 3.3V | PCWHD | ||
| PIC24EP Kit PIC24EP256GP206 |  | 1 | 3 | 1 | 2 | 53 | 16 | AC adapter, 9V battery | Soldered | ICD, Real-ICE | 3.3V | PCWHD | ||
| DSP Starter Kit DSPIC30F4012 |  | 1 | 3 | 1 | 1 | 10 | 1 | AC adapter | Soldered | ICD | 5V | PCWHD | ||

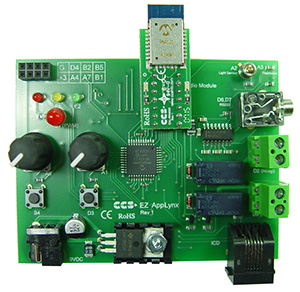

| EZ App Lynx w/ RN4020 Kit PIC18F45K22 |  | 2 | 4 | 2 | 1 | 6 | 4 | Light Sensor, Temp Sensor, Bluetooth® interface, Wireless socket, 2 Relay | AC adapter | Soldered | ICD | 3.3V | PCWH | |
| CAN Bus Kit PIC18F45K80, PIC16F1938 |  | 5 | 9 | 3 | 2 | 30 | 10 | 7 Seg LED's | CAN Bus | AC adapter | Soldered | ICD | 5V | PCWH |
| CAN Bus 24 Kit PIC24HJ256GP610, DSPIC30F4012 |  | 5 | 9 | 3 | 2 | 30 | 6 | 7 Seg LED's | CAN Bus | AC adapter | Soldered | ICD | 5V | PCWHD |
| CAN Bus FD Kit PIC16F15324, PIC16F18346, DSPIC33CH128MP506 |  | 5 | 9 | 2 | 2 | 30 | 11 | 3 Digit 7 Seg LED's | CAN Bus | AC adapter | Soldered | ICD | 3.3V, 5V | PCWHD |
| Capacitive Touch Kit PIC16LF727 |  | 0 | 1 | 0 | 1 | 8 | 6 | Character LCD, CAP Sense keypad | Piezo Buzzer | AC adapter | Soldered | ICD, Tag-Connect | 3.3V | PCW |
| Touch Display 4.3 Kit PIC24EP512GU810 |  | 0 | 0 | 0 | 0 | 8 | 0 | TFT Display with a Resistive Touch-screen | USB, I/O pins are 5V | AC adapter | Soldered | ICD, Bootloader | 3.3V | PCWHD |
| DSP Analog Kit DSPIC33EP256MU806 |  | 4 | 2 | 3 | 1 | 22 | 8 | Character LCD | CODEC and Amp, Multi-Media Card | AC adapter | Soldered | ICD | 3.3V | PCWHD |
| Embedded Ethernet Kit PIC18F4620 |  | 1 | 3 | 1 | 1 | 30 | 12 | Character LCD | Serial EEPROM, Multi-Media Card, Ethernet | AC adapter | Soldered | ICD | 5V | PCWH |
| 3.3V Embedded Ethernet Kit PIC18F67J60 |  | 1 | 3 | 1 | 1 | 20 | 2 | Character LCD | Serial EEPROM, Multi-Media Card, Ethernet | AC adapter | Soldered | ICD | 5V | PCWH |
| RFID Kit PIC16F876 |  | 0 | 3 | 0 | 1 | 0 | 0 | RS-485, RFID | AC adapter | Soldered | ICD | 5V | PCW | |
| Long Range RF Kit PIC18F45K22 |  | 2 | 4 | 2 | 1 | 6 | 4 | Light Sensor, Temp Sensor, LoRaWAN® interface, Wireless socket, 2 Relay | AC adapter | Soldered | ICD | 3.3V | PCWH | |
| USB Kit PIC18F45K50 |  | 1 | 3 | 1 | 1 | 30 | 12 | USB | AC adapter, USB | Soldered | ICD | 5V | PCWH | |
| USB Master Kit PIC18F67J10 |  | 2 | 3 | 1 | 1 | 14 | 4 | USB, Real-Time Clock | AC adapter, USB | Soldered | ICD | 5V | PCWH | |
| USB for PIC24 Kit PIC24FJ256GB206 |  | 1 | 3 | 1 | 1 | 30 | 5 | Character LCD | USB, Real-Time Clock | AC adapter | Soldered | ICD | 3.3V | PCWHD |
| Rapid USB Prototype Stick PIC16F1459 |  | 1 | 2 | 0 | 0 | 8|2 | 5|2 | USB | AC adapter, USB | Soldered | Tag-Connect, Bootloader | 5V | ||
| Rapid 18 Kit PIC18F4523 |  | 2 | 3 | 1 | 0 | 24 | 11 | Character LCD, Keypad Socket | USB, Piezo Speaker/ Buzzer, Real Time Clock/ Calendar, Relay | AC adapter | Soldered | ICD, Bootloader | 5V | PCWH |
| Wireless-Ember ZigBee™ Edition Kit PIC18LF4620, PIC16F866 |  | 2 | 8 | 1 | 1 | 10 | 6 | 3 Digit 7 Seg LED's | Light Sensor, Temp Sensor, Zigbee™ | AC adapter, 9V battery | Soldered | ICD | 5V | PCWH |
| Robot Car Kit PIC24FJ128GB606 |  | 1 | 0 | 0 | 0 | 10 | 2 | 2 Proximity Sensors, 3 Line Sensors, 2 Motor Drivers, Electronic Compass, Speaker, Bluetooth® Socket | 4 AA batteries | Soldered | ICD | 5V | PCWHD | |
| Embedded Serial Busses Kit PIC16F877A, PIC16F876 |  | 3 | 6 | 2 | 2 | 30 | 7 | 4 Digit 7 Seg LED's | 8 Toggle Switches, Real-Time Clock, Serial EEPROM, Temp Sensor | AC adapter | Soldered | ICD | 5V | PCW |
| LPC Starter Kit PIC16F1469 |  | 2 | 3 | 1 | 0 | USB | AC adapter | 8 Pin Socket, 14 Pin Socket, 18 Pin Socket, 20 Pin Socket | ICD | 3.3V, 5V | PCW | |||
| ACE Kit ZIF |  | 2 | 5 | 2 | 2 | 30 | LCD Socket, Keypad Socket | USB | AC adapter | Soldered, 40 Pin ZIF Socket, 28 Pin ZIF option | ICD | 5V | PCW | |
| C Workshop Prototype Board & Debugger Kit PIC16F818 |  | 1 | 6 | 1 | 0 | 4 | 2 | 4 Toggle Switches | ICD | Soldered | ICD | 5V | ||
| E3 Mini PIC18F14K50 |  | 2 | 3 | 1 | 0 | 13 | 8 | USB, Piezo Buzzer | ICD | Soldered | Tag-Connect, Bootloader | 5V | ||
