Capacitive Touch Development Kit

Capacitive Touch Development Kit
Development Kit Options
Tools Includedw/Compiler
Compiler SoftwarePCW
Prototyping boardXXX
Power supply & cablesXX
Exercise bookXX
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

Create human touch applications with the Capacitive Touch Development Kit. Along with a prototyping board, it includes the powerful PCW Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12 and PIC16 families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The capacitive touch prototyping board features Microchip's new PIC16LF727- part of the new generation of Enhanced Mid-Range family of PIC16 devices with mTouchâ„¢ Sensing Solution technology. An exercise tutorial contain 14 example programs steps the user through capacitive touch applications.

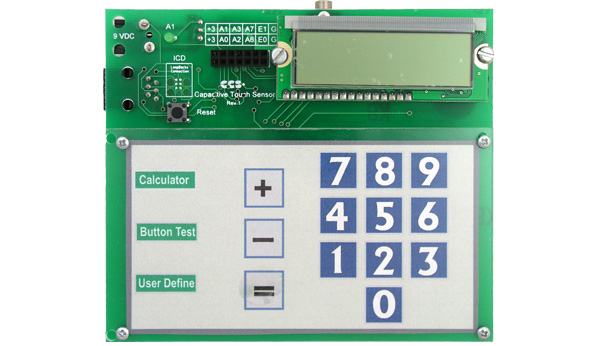

Capacitive Touch Prototyping Board includes:

Prototyping Board Image
  • PIC16LF727 Flash Device
  • 16 programmable capacitive pads
  • LCD screen (16x2 chars)
  • RS-232 Port with RS-232 Level Converter
  • One LED
  • On-board buzzer
  • 8 pin Header to access unused I/O pins
  • Board is equipped with *Tag Connect footprint for ICSP programming
  • * Tag-Connect Cable sold separately

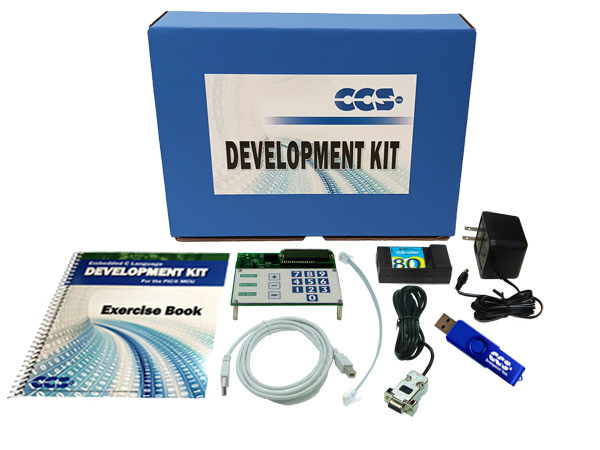

Capacitive Touch Development Kit includes:

  • Capacitive Touch Prototyping Board
  • In-Circuit Programmer/Debugger
  • Exercise Tutorial
  • 9V AC Adapter and Cables

Click here to view the Prototyping Accessories.
