PIC16F1825 Development Kit
| Development Kit Options | |||
| Tools Included | w/Compiler | Hardware Only* | Proto- Board* |
| Sku | S-187 | 53325-1524 | 53111-1523 |
| Compiler Software | PCW | ||
| Programmer |  | | |
| Prototyping board | | | |
| Power supply & cables | | | |
| Prototyping Parts Box | | | |
| Exercise book | | | |
| Price | $480 | $155 | $45 |
 | |||
| *Hardware only and proto-boards are intended for customers already owning a CCS compiler. View Details. The estimated return to stock date is September 30, 2025. | |||
The development kit contains everything you need to begin development with Microchip's PIC16F1825 which supports Data Signal Modulator (DSM) for generation of custom bit streams. Along with a prototyping board, it includes the powerful PCW C-Aware IDE Compiler for Microchip PIC® PIC10, PIC12, PIC16 families and an ICD-U80 in-circuit programmer/debugger that supports real time debugging. The prototyping board features an external memory interface with a PIC16F1825 connected to a potentiometer, a pushbutton, three LEDs, an RS-232 level converter connected to the C4/C5 UART and an ICD connector. Several EEPROMS are included for developing applications that require external memory.

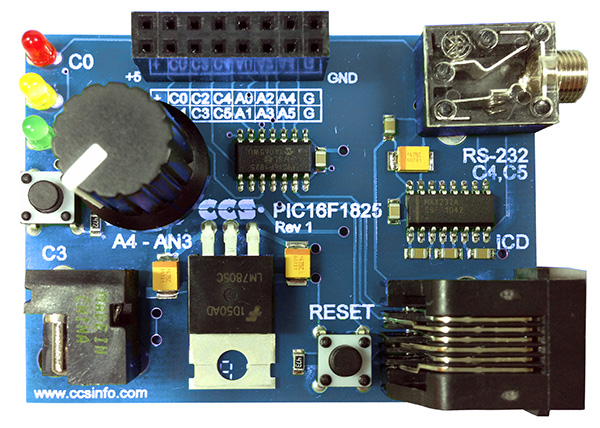

PIC16F1825 Prototyping Board (Size: 2 3/8" x 1 3/4") includes:
- PIC16F1825
- 14 I/O Pins (3 can be Analog)
- One Potentiometer
- One Pushbutton
- Three LEDs
- RS-232 Level Converter
- External EEPROM
- ICD Jack

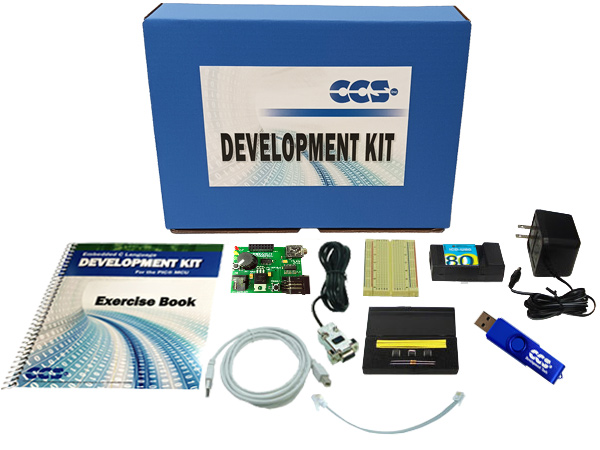

PIC16F1825 Development Kit includes:
- PIC16F1825 Prototyping Board
- In-Circuit Debugger/Programmer
- Breadboard
- Parts box with:
- 93LC56 serial EEPROM chip
- DS1631 digital thermometer chip
- NJU6355 real-time clock IC with attached 32.768kHz crystal
- Two digit 7-segment LED module
- Two 1K Ohm resistors
- Jumpers to connect the breadboard
- Exercise Tutorial
- 9V AC Adapter
- Serial PC to Prototype Board Cable
- ICD to Prototype Board Cable
- USB PC to ICD Cable
PIC16F1825 Information
