LPC Starter Development Kit
| Development Kit Options | |||
| Tools Included | w/Compiler | Hardware Only* | Proto- Board* |
| Sku | S-199 | 53330-1608 | 53222-1607 |
| Compiler Software | PCW | ||
| Programmer |  | | |
| Prototyping board | | | |
| Power supply & cables | | | |
| Exercise book | | | |
| Price | $480 | $155 | $40 |
 | |||
| *Hardware only and proto-boards are intended for customers already owning a CCS compiler. View Details. The estimated return to stock date is September 30, 2025. | |||
The Low Pin Count (LPC) Starter development board supports prototyping with 8, 14, 18 or 20 pin PIC® processors. With an ICD-U80, debugging is possible using the CCS C-aware real time debugger on processors that have debugging support. On-board interfaces and access to all processor pins makes rapid prototyping for these small parts easy. On-board TTL serial to USB converter (PIC® MCU based) can be reprogrammed with a tag-connect cable. This development kit includes the powerful PCW Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12 and PIC16 families.

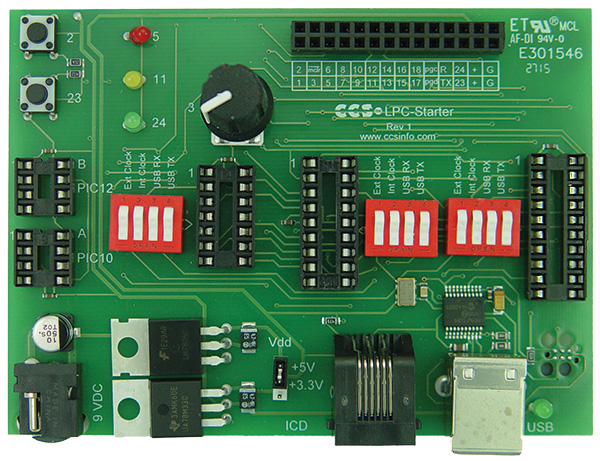

LPC Starter Prototyping Board (Size: 4" x 2.94") includes:
- 8, 14, 18 and 20 pin DIP processor sockets
- Jumper selectable 3.3V or 5V Vdd
- 8mhz oscillator can be optionally switched in
- TTL serial to USB converter can be switched into any processor
- Three LEDs
- Two Pushbuttons
- One Potentiometer
- Standard ICD connector
- Breakout header to each PIC® MCU I/O pin

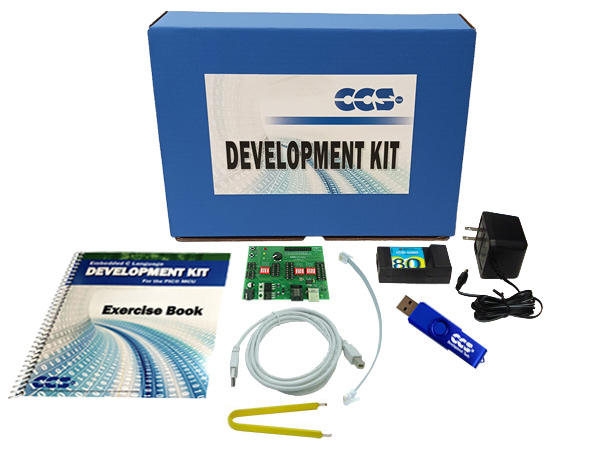

LPC Starter Development Kit includes:
- LPC Starter Prototyping Board with a PIC16F1469 Processor Chip
- ICD-U80 In-Circuit Debugger/Programmer
- Exercise Book
- 9V AC Adapter
- ICD to Prototype Board Cable
- USB PC to ICD Cable
- Chip Extractor
- PIC16F1824 DIP14 Processor
- DVD of C Compiler (optional)
LPC Starter Information
