PIC12F675 Development Kit
| Development Kit Options | |||
| Tools Included | w/Compiler | Hardware Only* | Proto- Board* |
| Sku | S-123 | 53303-469 | 53101-403 |
| Compiler Software | PCW | ||
| Programmer |  | | |
| Prototyping board | | | |
| Power supply & cables | | | |
| Prototyping Parts Box | | | |
| Exercise book | | | |
| Price | $504 | $179 | $55 |
 | |||
| *Hardware only and proto-boards are intended for customers already owning a CCS compiler. | |||
This development kit contains everything you need to begin development with Microchip's PIC® PIC12F675 MCU. Along with a prototyping board, it includes the powerful PCW Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12 and PIC16 families and an ICD-U80 in-circuit programmer/debugger that supports C-aware real time debugging. The prototyping board features an 8-pin PIC12F675 connected to two potentiometers, a pushbutton, three LEDs, an RS-232 level converter and an ICD connector.
This Low Pin-count (8) PIC® Flash microcontroller offers on-chip EEPROM Data Memory, nanoWatt Technology, an analog comparator module with a single comparator, and a programmable on-chip voltage reference. This chip also comes with a Precision internal oscillator, software selectable BOR, and extended WDT.

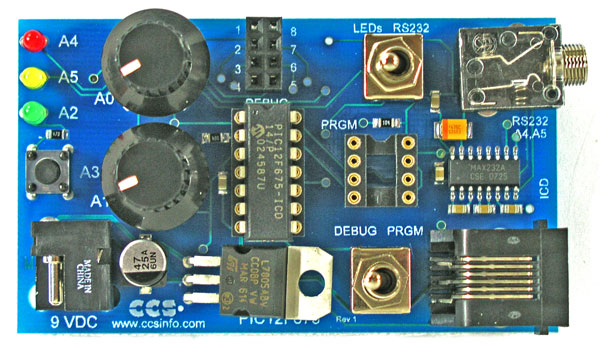

The PIC12F675 Prototyping Board (Size: 3" x 1.75" ) includes:
- PIC12F675 and PIC12F675-ICD
- 6 I/O Pins (4 Can Be Analog)
- Two Potentiometers
- One Pushbutton
- Three LEDs
- RS-232 Level Converter
- ICD Jack
- Two switches
The PIC12F675 Development Kit includes:
- PIC12F675 Prototyping Board
- In-Circuit Debugger/Programmer
- Breadboard
- Parts box with:
- 12F675 8-pin chip
- Jumpers (wires)
- Two 10K Ohm 1/4W resistors
- IC Extractor
- Thermistor resistor
- Pushbutton switch
- Green 5V LED
- Red 5V LED
- Yellow 5V LED
- Exercise Tutorial
- 9V AC Adapter
- Serial PC to Prototype Board Cable
- ICD to Prototype Board Cable
- USB PC to ICD Cable
